eyePower Limited have five models of intelligent PDU available in the range.
Part Number Explanation
RPU models offer outlet relays, RS422 and Ethernet for control and monitoring, as well as a 1-Wire™ port to attach environmental sensors such as temperature and humidity. Relay sequences and timings are fully programmable. Measurements of input current and live/neutral voltage, earth/neutral voltage and live/neutral imbalance (aka earth leakage) are displayed on the full colour OLED, with buttons to select parameters such as power factor, real kW and apparent kVA power. These measurements are also available to external management systems through a comprehensive API and SNMP (monitoring only Q3/21).
RPI models have all of the above with individual channel outlet current measurement added.
RPx 214PE models have dual inlets with auto changeover on power fail of the active inlet. Changeover / changeback options are user programmable.
RPx 114PE and RPx 214PE have 16A/20A Neutrik powerCON connectors. RPI 314PE models have a single 32A Neutrik powerCON connector.
Products
RPU 114PE
1 x 16A inlet 14 x IEC C13 10A outlet PDU with 1-Wire™ and Ethernet.
RPU 214PE
2 x 16A inlet 14 x IEC C13 10A outlet changeover PDU with 1-Wire™ and Ethernet.

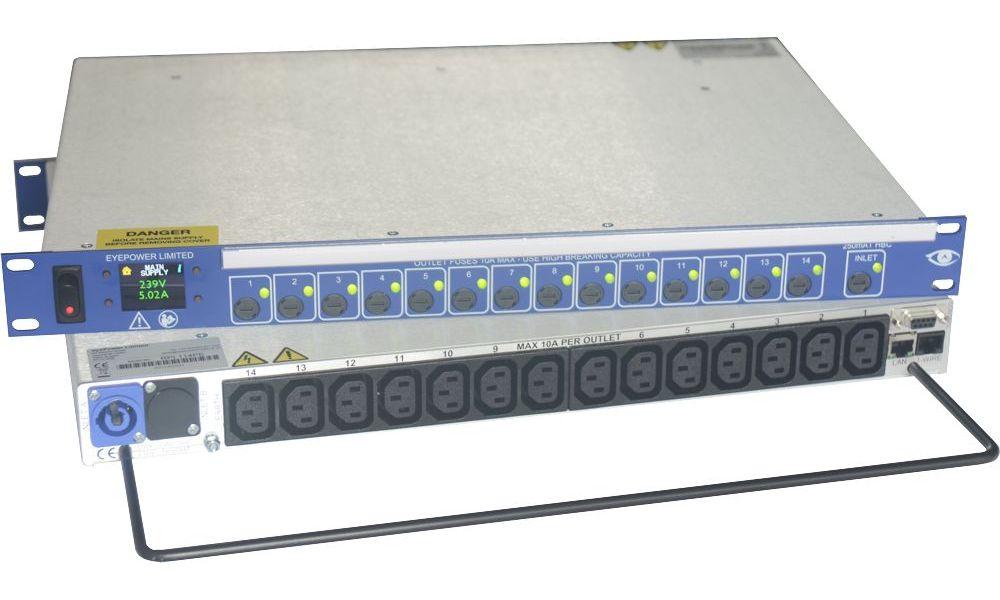

RPI 114PE
1 x 16A inlet 14 x IEC C13 10A outlet PDU with outlet current, 1-Wire™ and Ethernet.

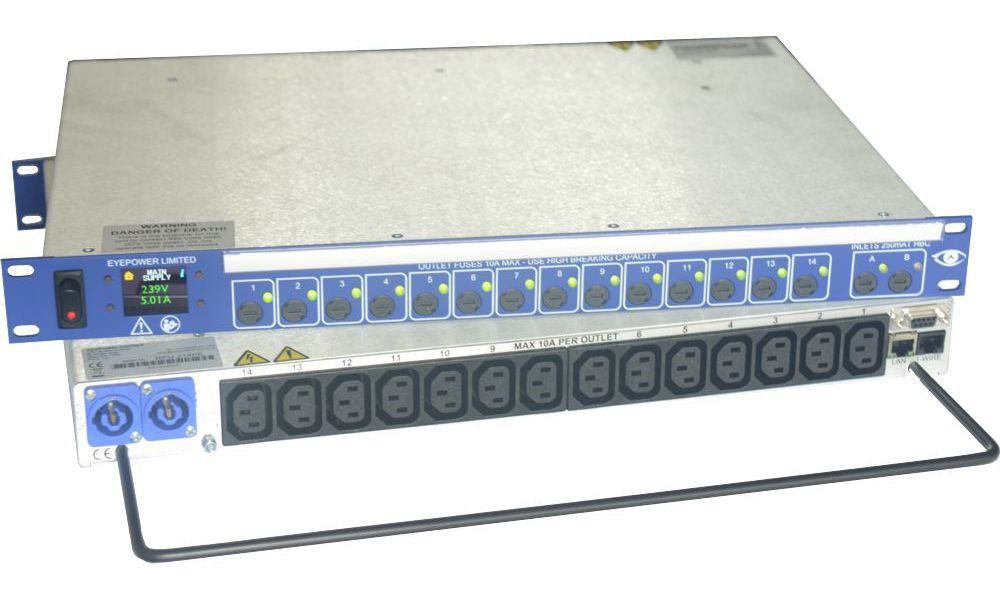

RPI 214PE
2 x 16A inlet 14 x IEC C13 10A outlet changeover PDU with outlet current, 1-Wire™ and Ethernet.

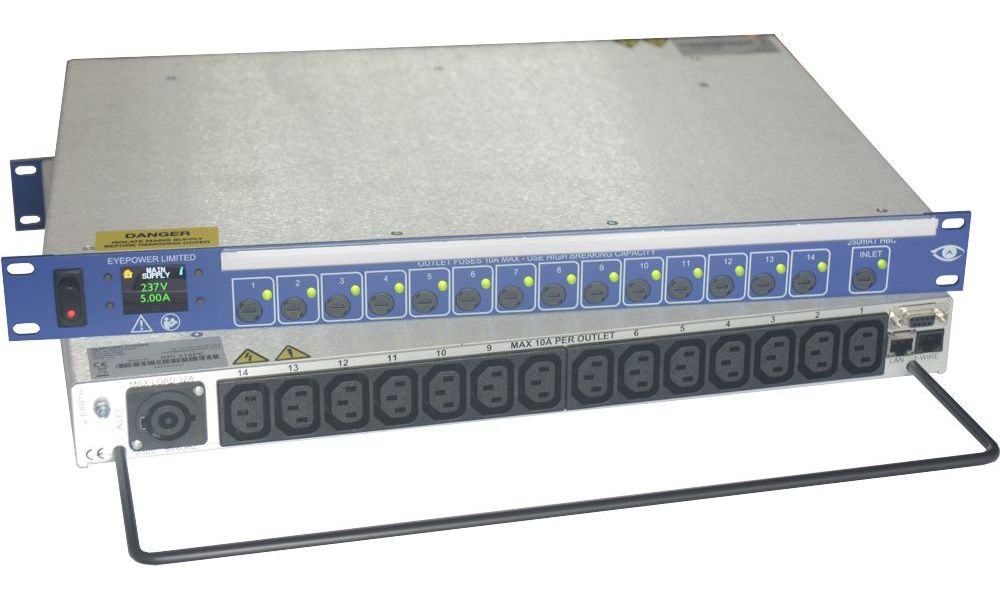

RPI 314PE
1 x 32A inlet 14 x IEC C13 10A outlet PDU with outlet current, 1-Wire™ and Ethernet.
Accessories

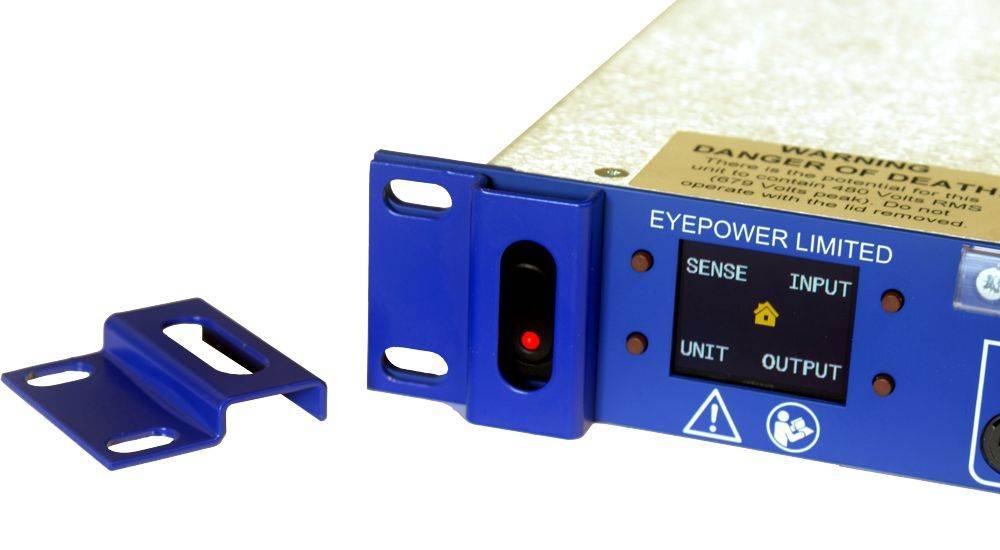

EYPSG 03
Switch Guard for eyePower PDU

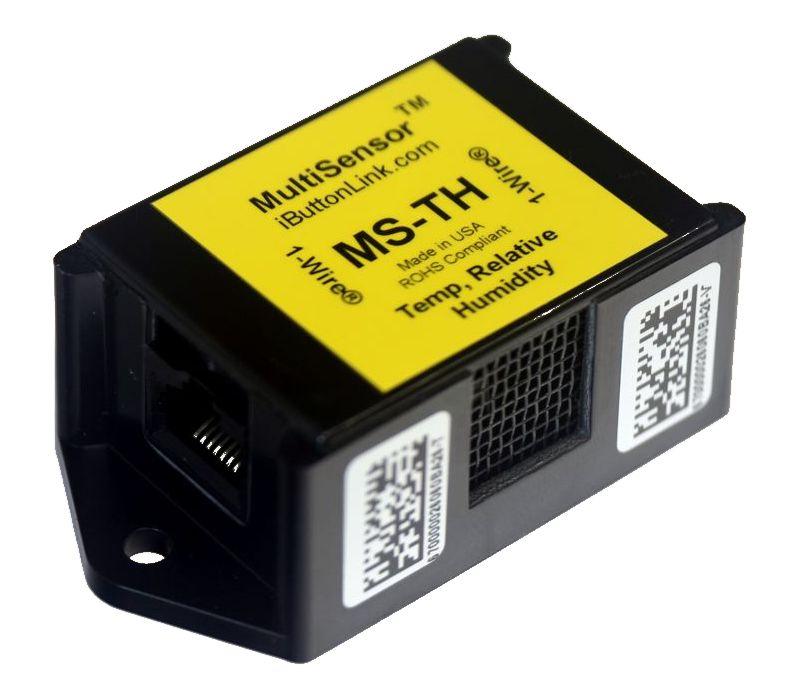

RHU 001
1-Wire Temp/Humidity Module

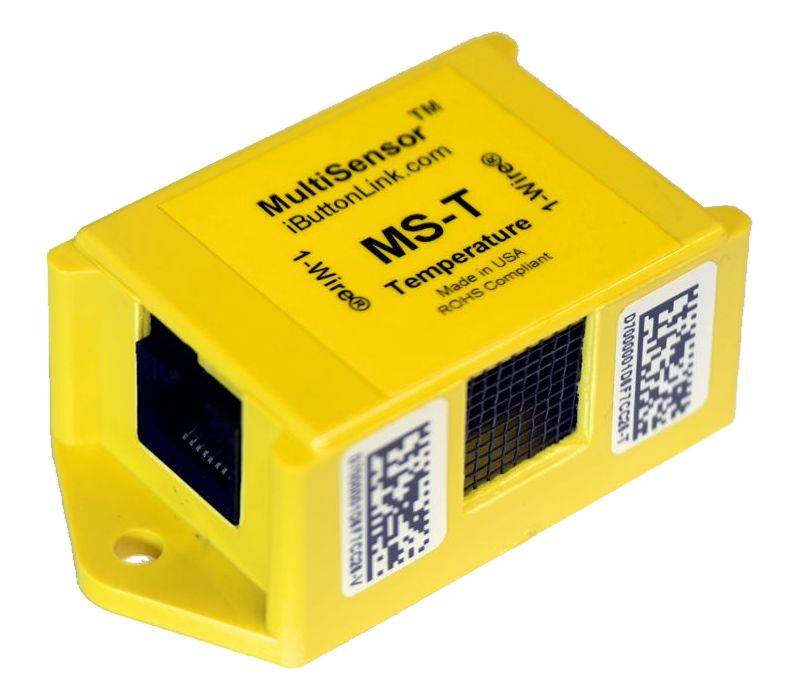

RTU 001
1-Wire Temperature Module

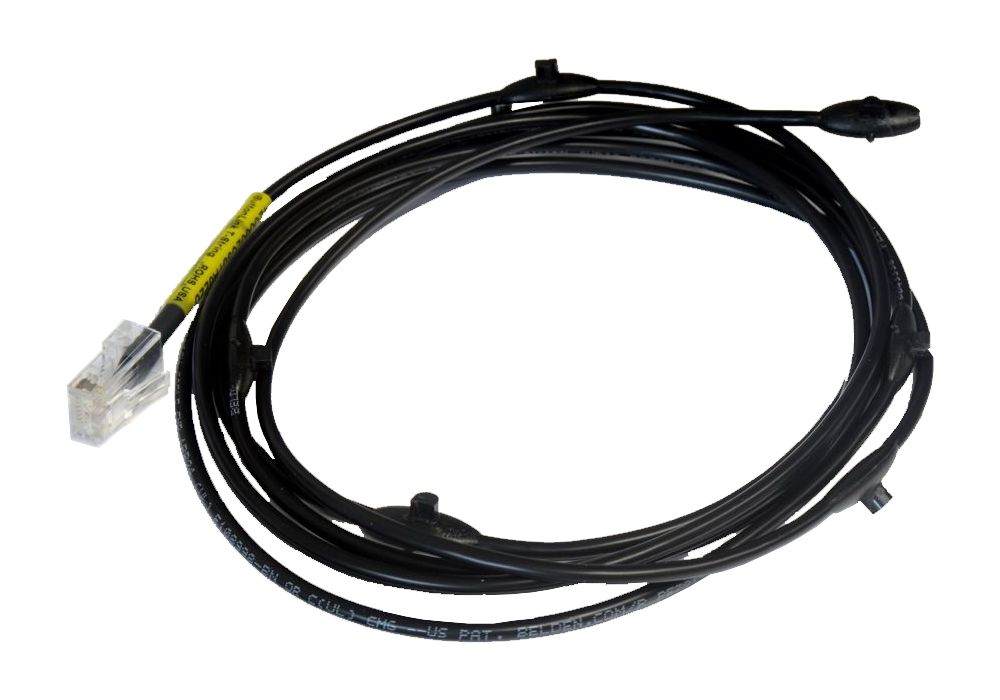

RTU 006
1-Wire Temperature Chain (6 sensors)
Please Note: eyePower PDU are designed for EU mains or similar, 230VAC +/-10% with neutral and earth nominally at the same potential. They are not for use on lower mains voltages, for example 100-120VAC, although custom builds are possible for larger orders. The units should never be used on rare ‘balanced’ mains where live and neutral are centred on earth, L/N measuring similar voltages to earth. Balanced mains requires fusing in both live and neutral distribution.
